主要技术指标
Technology Parameter
所有的参数都可能被修改,修改时将不另行通知。
All parameters may be modified and will be subject to change without notice.
电源电压
Electrical Source Pressure |
220V±10%
|
输入电流
Input Current |
Max 10A交流 |
电源频率
Electrical Source Frequency |
50Hz |
输出电流
Output Current |
Max 20000A直流 |
环境温度
Surroundings Temperature |
-10~+40℃ |
输出电压
Output Pressure |
400~1500V直流 |
相对温度
Relative Temperature |
≤9554(25℃) |
电容容量
Capacitance Capacity |
1600μF |
功率
Power |
Max 2KW |
充电时间
Charge Time |
0~2s |
重量
Weight |
80Kg |
充磁时间
Chargeing Mmagnetism Time |
50μs~300ms |
外形
Volume |
500×450×1100(宽×厚×高) |

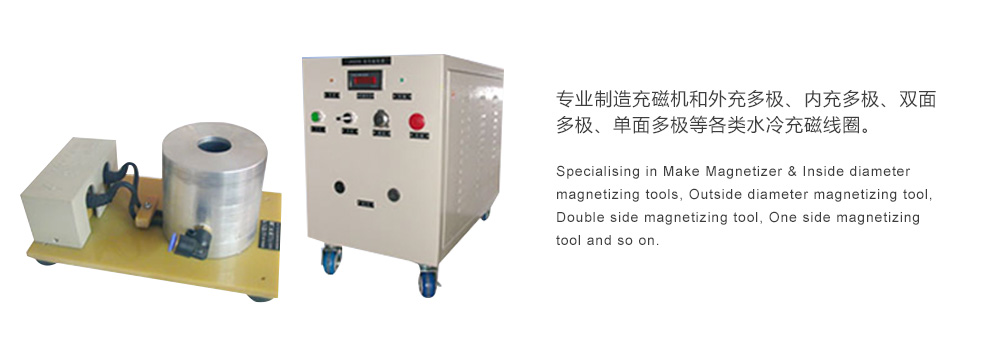

以上为标准机型,其它机型需订做。本公司也可设计制作各种充磁夹具。
This is the standard type. Other types are required to be ordered. We also can design and make all kinds of charging magnetism clamps.
